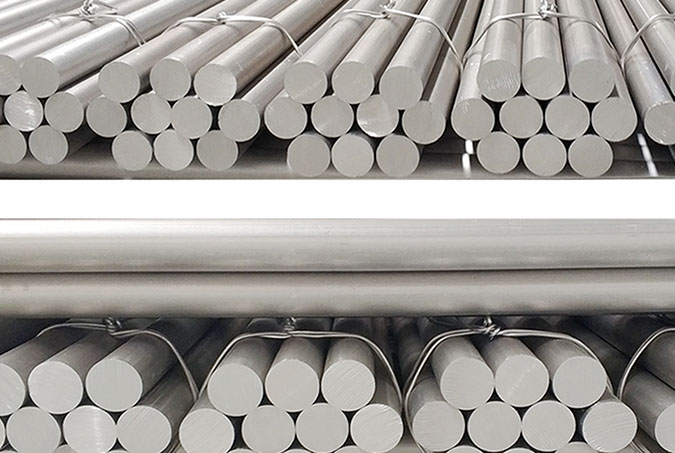

2A12 Aluminum Round Bar
Introduction
2A12 aluminum bar, also known as high-strength duralumin, is a typical duralumin alloy in the AL-Cu-Mg system and can be strengthened by heat treatment. At the same time, its composition is relatively reasonable, and its overall performance is good.
The Introduction of 2A12 aluminum round bar
2A12 aluminum bar, also known as high-strength duralumin, is a typical duralumin alloy in the AL-Cu-Mg system and can be strengthened by heat treatment. At the same time, its composition is relatively reasonable, and its overall performance is good. It is a hard aluminum material produced in many countries, and its usage is the largest among hard aluminum materials. It has certain heat resistance and can be used as working parts below 150°C. Widely used in aircraft structures, rivets, truck wheels, propeller components, and other structural parts. However, caution is required when using gas and TIG welding because it tends to form intergranular cracks. This alloy has good machinability after cold work hardening, but its corrosion resistance is not high, so anodizing and painting methods are usually required to improve its corrosion resistance.
The Product Specification of 2A12 aluminum round bar
|
Alloy |
2A12 aluminum round bar |
|
Temper |
O, T1, T2, T3, T4, H12, H14, H26, H112, etc. |
|
Diameter |
30-2000mm |
|
Length (mm) |
customized as required |
|
MOQ |
5 TON |
Chemical composition
| Element | Cu | Si | Fe | Mn | Mg | Zn | Cr | Ti | Al |
| Content | 3.8-4.9 | ≤0.5 | 0.0-0.5 | 0.3-0.9 | 1.2-1.8 | ≤0.3 | - | ≤0.15 | Remain |
Mechanical properties:
| Tensile Strength MPa | Yield strength MPa | Elongation% |
| ≥472 | ≥325 | 10 |
The Product Features of 2A12 aluminum Round Bar
● High strength: 2A12 aluminum bar has high tensile strength and yield strength, can withstand large loads, and is suitable for manufacturing structural parts that need to withstand heavy objects and pressure.
● Good plasticity: 2A12 aluminum bar has good plasticity before heat treatment and can be used for plastic processing, such as stretching, bending, etc.
● Good corrosion resistance: Compared with other metal materials, aluminum has good corrosion resistance and can resist the erosion of air, water and acid.
● Low density: Aluminum has a low density, which can reduce the weight of structural parts and facilitate transportation and use..
● Good conductivity: Aluminum is a good conductive material and can be used to manufacture structural parts that need to conduct electricity.
2A12 aluminum round bar application
1.Aircraft structural parts: this aluminium bar has good malleability and strength and is suitable for the manufacture of skeleton parts, skins, spacer frames, wing ribs, wing beams, etc. on aircraft.
2. Rivets: due to its good malleability and strength, it is often used to manufacture rivets in aircraft and other structures.
3.Truck wheels: Due to their high strength and corrosion resistance, they are often used in the manufacture of truck wheels.
4.Propeller elements: It is also a good choice in the manufacture of propeller elements.
Other structural parts: 2A12 aluminum bar is also widely used in the manufacture of various other structural parts, such as building structural parts and ship structural parts.
