6061 anti-slip patterned aluminum plate
6061 non-slip patterned aluminum sheet combines the mechanical advantages of 6061 aluminum alloy with specialized surface textures to deliver exceptional slip resistance, making it ideal for environments where safety and structural integrity are critical. As a precipitation-hardened Al-Mg-Si alloy, 6061 offers superior strength-to-weight ratio, corrosion resistance, and formability—qualities enhanced by precision-engineered surface patterns that significantly increase friction coefficients. Henan Mingtai Aluminum Co., Ltd. (stock code: 601677), a leading aluminum processor with over 20 years of expertise, manufactures customized 6061 non-slip patterned aluminum sheets in various specifications, catering to stringent requirements across industrial, architectural, and transportation sectors worldwide.
1. Key Performance Advantages of 6061 Non-Slip Patterned Aluminum Sheet
The unique combination of 6061 alloy properties and patterned surfaces results in a material that excels in demanding environments:
●High Tensile Strength for Structural Applications: With tensile strength ranging from 180-300 MPa (depending on temper), 6061 non-slip aluminum sheet outperforms pure aluminum alternatives, making it suitable for load-bearing applications such as industrial platforms, truck beds, and walkways. Its yield strength of ≥110 MPa ensures minimal deformation under constant stress, while its lightweight nature (density 2.70 g/cm³) reduces structural loads compared to steel.
●Superior Slip Resistance Across Conditions: The engineered surface patterns—including 5-bar, 3-bar, diamond, and pointer designs—increase friction coefficients to 0.7 or higher, even in wet or oily environments. This represents a 40% improvement over smooth aluminum sheets, significantly reducing accident risks in sectors like manufacturing, construction, and transportation. Mingtai’s precision embossing ensures consistent pattern height (0.5-1.2mm) and distribution across entire sheets.
●Excellent Corrosion Resistance for Longevity: 6061 alloy forms a dense oxide layer that naturally resists atmospheric corrosion, chemical exposure, and moisture damage. This characteristic, combined with the protective nature of patterned surfaces, extends service life to 15+ years in outdoor or industrial settings. The material passes 2000-hour salt spray tests with minimal degradation, making it suitable for coastal or humid environments.
●Versatile Formability for Custom Fabrication: Despite its high strength, 6061 non-slip aluminum sheet maintains excellent workability, allowing for cutting, welding, bending, and stamping into complex shapes. Available in tempers T4 (formable) and T6 (high-strength), it accommodates diverse manufacturing needs—from curved stair treads to custom equipment panels—with thickness options ranging from 1.2mm to 8.0mm.
2. Pattern Types and Technical Specifications
Mingtai Aluminum offers a comprehensive range of patterns and specifications to match specific application requirements:
| Alloy | 1 Series | 1060,1100 |
| 3 Series | 3003,3105 | |
| 5 Series | 5005,5052,5251,5154,5454,5754,5083,5086 | |
| 6 Series | 6061,6063,6082 | |
| Temper | O, H12, H14, H16, H18, H22, H24, H26, | |
| H32, H34, H36, H38, H111, H112, H114, H224, T4, T6 | ||
| Thickness(mm) | 0.8-8.0 | |
| Width(mm) | 100-1850 | |
| Length(mm) | 500-16000 | |
| Surface | Bright finish, Mill finish | |
| Bar difference | 1 bar (Diamond/Pointer), 2 bar, 3 bar, big/small 5 bar | |
| Weight | about 2.5 tons per pallet | |
| Standard product | EN-1386,ASTM,GBT,JIS | |
| Protection | Paper interlayer | |
| Available Dimension | ||
| Mill finish Surface | Bright finish Surface | |
| Thickness (mm) | 1.00—6.50mm | 1.20—6.50mm |
| Pattern height | Sheet Thickness from 1.0mm to 2.0mm, bar height: 0.50mm | Sheet Thickness from 1.0mm to 2.0mm, bar height: 0.50mm |
| Sheet Thickness from 1.0mm to 2.0mm, bar height: 1.00mm | Sheet Thickness from 1.0mm to 2.0mm, bar height: 1.00mm | |
| Sheet Thickness above 2.0mm, bar height: 1.50mm | Sheet Thickness above 2.0mm, bar height: 1.50mm | |
| Width (mm) | Maximum 1500mm | Maximum 1650mm |
| Length (mm) | max 6000mm for sheet or as require d for coil | max 6000mm for sheet or as required for coil |
| Paper interleaves | On request for selected | On request for selected |
| Normal size | 1200×2400mm, 1219×2438mm, 1219×3048mm | 1200×2400mm, 1219×2438mm, 1219×3048mm |
3. Industry Applications: Safety Meets Performance
6061 non-slip patterned aluminum sheet delivers proven results across critical sectors:
●Industrial Manufacturing: Used for factory floors, machinery platforms, and maintenance walkways where oil, coolant, or debris create slip hazards. Its high strength supports heavy equipment, while corrosion resistance withstands chemical exposure.
●Transportation: Integrated into truck beds, trailer floors, and vehicle steps to secure cargo and prevent accidents. Its lightweight properties improve fuel efficiency compared to steel alternatives, while durability reduces maintenance needs.

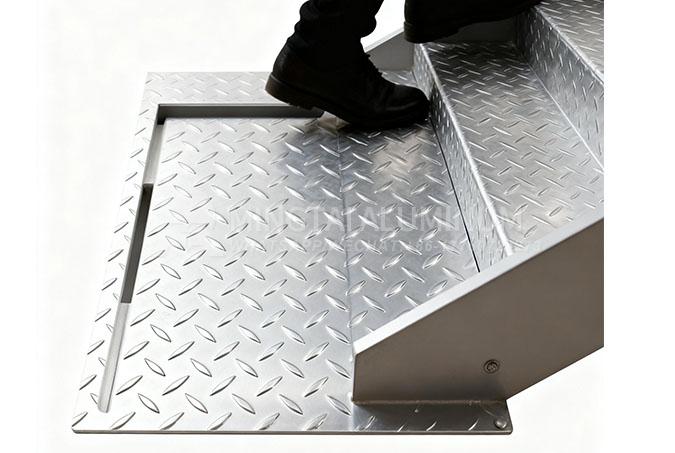

●Construction and Architecture: Applied as stair treads, rooftop walkways, and balcony flooring in commercial buildings. The material’s weather resistance ensures long-term performance in outdoor environments, while customizable patterns enhance aesthetic integration.
●Marine and Offshore: Ideal for ship decks, dock surfaces, and offshore platforms due to exceptional saltwater corrosion resistance. The non-slip surface prevents accidents in constantly wet conditions.
4. Why Choose Mingtai’s 6061 Non-Slip Patterned Aluminum Sheet?
Mingtai Aluminum’s manufacturing capabilities and quality control ensure superior products:
●Advanced Production Facilities: Equipped with domestic-first “1+4” hot rolling lines, CVC 6-high cold rolling mills, and precision pattern embossing machines, Mingtai achieves consistent thickness, flatness, and pattern definition across large production runs.
●Strict Quality Assurance: Each batch undergoes comprehensive testing, including tensile strength verification, slip resistance measurement, and corrosion resistance assessment. With 600+ professional technicians, Mingtai guarantees compliance with international standards.
●Customization and Efficiency: Supports small-batch (3 tons+) and large-scale orders with flexible specifications. Fast delivery (3-30 days) and global logistics ensure timely project execution.
●Sustainable Production: Utilizes recycled aluminum with eco-friendly processing, reducing carbon emissions by 18% compared to traditional methods—aligning with global sustainability goals.
Contact Mingtai for 6061 Non-Slip Patterned Aluminum Sheet
For reliable 6061 non-slip patterned aluminum solutions tailored to your industry needs, contact Mingtai Aluminum. Our technical team provides expert guidance on pattern selection, temper options, and fabrication support.
