Introduction
Tank trucks are transport vehicles with a tank-shaped body used for carrying various liquids, liquefied gases, powdered goods, etc. The body of an aluminum alloy tank truck consists of several parts, including side panels, fenders, and tank openings.
The commonly used aluminum plates for tank trucks in the market are generally less than 12.5 meters in length and less than 2.2 meters in width. The common thicknesses are 5mm, 6mm, 7mm, and 8mm. A complete tank body of a tank truck usually requires the welding of 4-6 aluminum plates.
The tank body is made of 5083H111 aluminum plate, and the tank covers on both sides require bending, which uses 5083-O temper aluminum plate. The O temper is softer, making it suitable for bending. The partition (fender) section uses 5083-O temper as well.
In addition, some manufacturers use 5454H111 aluminum plates to produce tank bodies
Mingtai Aluminum supplies raw materials for producing aluminum plates for tank trucks, including 5083, 5052, 5754, 5454, 5182, etc. For inquiries, please contact us by email: at sales@mingtai-al.com or WhatsApp me: at +8617760728173.
Products
5083 Aluminum Sheet Plate for Tank Truck
Learn More5083 Aluminum sheet plate for tank truckis the most widely used aluminum alloy in the manufacture of tanker. The two commonly used tempers for tanker body are 5083-H111 and 5083-O.
5083-O aluminum sheet plate is annealed status and soft, suitable for bending, used for tank truck heads, lid and anti-wave board.
5083-H111 aluminum sheet plate has high strength, good plasticity, and can withstand certain impacts and vibrations, and is often used in tank truck bodies.
5083-H32 aluminum sheet plate has the strength and hardness lower than 5083-H111, can also be used to make the body of tank trucks, is usually suitable for occasions with small pressure and load.
5083-H321 aluminum sheet plate has excellent resistance to stress corrosion cracking and high-strength, is used in high-pressure environments, like the liquid level gauge, air inlet and other parts of oil tank trucks.
5182 Aluminum Sheet Plate for Tank Truck
Learn More5182 Aluminum sheet plate for oil tanker has high tensile strength and elongation, exceptional durability and corrosion resistance, excellent welding performance.
When 5182 aluminum alloy is used for welding, the mechanical properties in welding can reach the minimum values specified for the base metal. Under the same diameter, the thickness of the aluminum tank truck made of 5182 aluminum plate can be 0.5mm - 1mm thinner than that of 5083 alloy.
5182 Aluminum sheet plate is commonly used in the manufacturing of fuel tankers or tank trailers.
5454 Aluminum Sheet Plate for Tank Truck
Learn MoreIt has good strength and corrosion resistance at high temperatures. Mingtai 5454 tank car aluminum plates come in two types: polished and mirror, which are very popular in the Middle East region. Mainly used for insulation tanks and polishing tank bodies, tank car heads, washing plates, etc.
5754 Aluminum Sheet Plate for Tank Truck
Learn More5754 Aluminum sheet plate for tank truck has good anti-rust and corrosion resistance, no color difference on the anodized surface, excellent processability, high strength and weldability.
The commonly used tempers of 5754 aluminum plate are 5754-H111, H22, H12, H14, H114, etc.
5754 aluminum sheet plate in different heat treatment tempers is the main material used in the automobile manufacturing industry (car doors, molds, seals) and the production of tank cars.
It is widely used in welded structures, storage tanks, pressure vessels, ship structures and offshore installations, automobile manufacturing, and tank trucks.
5052 Aluminum Sheet Plate for Tank Truck
Learn MoreIt has excellent processability and weldability, and has good defense against chemical and industrial corrosion. It is mainly used in the manufacturing of tank car fuel tank plates, tank car inner partitions, ceilings, outer walls, bottom plates, and other parts.
Ultra-wide aluminum plate for tanker
Learn MoreMingtai can produce ultra-wide aluminum plates with a width of up to 2650mm, reducing the number of riveting in the circumferential direction of the tank body, improving the overall strength and sealing of the tank body. Mingtai ultra-wide tank car plates have become the preferred choice for many tank car manufacturers.
Advantages of Aluminum Sheet for Tank Truck
◆ Oil tanker truck aluminum sheets have good plasticity, is easy to process, good ductility and has excellent forming performance.
◆ Strong weldability, can be gas welding, arc welding, contact spot welding and wire welding.
◆ Oil tanker truck aluminum plates have high strength, corrosion resistance, wear resistance and rust resistance, which can improve the corrosion resistance of the tank body and extend the life of the car body.
◆ The recovery rate of oil tanker truck aluminum sheet is high, which is more economical and environmentally friendly.
Specification of Pharmaceutical Aluminum Foil
|
Alloy |
Temper |
Thickness(mm) |
Width(mm) |
Length(mm) |
|
5083 |
O, H111, H112, H114, H116, H32, etc. |
4.0-8.0 |
1000-2650 |
500-16000 |
|
5052 |
4.0-8.0 |
1000-2650 |
500-16000 |
|
|
5754 |
4.0-8.0 |
1000-2650 |
500-16000 |
|
|
5454 |
4.0-8.0 |
1000-2650 |
500-16000 |
|
|
5182 |
4.0-8.0 |
1000-2650 |
500-16000 |
|
|
Surface |
Smooth surface, bright surface, mirror reflective surface |
|||
|
Standards |
GB/T 3880, EN14286, EN485, ASTM B209, or according to customer's special requirements |
|||
Chemical composition of Aluminum Plate for Tank Truck
|
Alloys |
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
Ti |
Other(%) |
|
|
Unit |
Total |
|||||||||
|
5083 |
0.20 |
0.35 |
0.15 |
0.20-0.50 |
4.0-5.0 |
0.10 |
0.25 |
0.10 |
0.05 |
0.15 |
|
5052 |
0.25 |
0.40 |
0.10 |
0.10 |
2.2-2.8 |
0.15-0.35 |
0.10 |
- |
0.05 |
0.15 |
|
5754 |
0.40 |
0.40 |
0.10 |
0.10 |
2.6-3.6 |
0.30 |
0.20 |
0.15 |
0.05 |
0.15 |
|
5454 |
0.25 |
0.40 |
0.10 |
0.10 |
2.4-3.0 |
0.05-0.20 |
0.25 |
0.20 |
0.05 |
0.15 |
|
5182 |
0.20 |
0.35 |
0.15 |
0.15 |
4.0-5.0 |
0.10 |
0.25 |
0.10 |
0.05 |
0.15 |
Mechanical character of Aluminum Plate for Tank Truck
|
Alloys |
Temper |
Rm(Mpa) |
Rp.02(Mpa) |
Elongation(%) |
|
5083 |
O/H111 |
≥275 |
≥125 |
≥15 |
|
|
H112 |
≥275 |
≥125 |
≥12 |
|
5052 |
O/H111 |
170-215 |
≥65 |
≥16 |
|
|
H112 |
≥190 |
≥80 |
≥7 |
|
5754 |
O/H111 |
190-240 |
≥80 |
≥16 |
|
|
H112 |
≥190 |
≥80 |
≥7 |
|
5454 |
H32 |
≥250 |
≥180 |
≥8 |
|
5182 |
O/H111 |
≥280 |
≥125 |
≥26 |
Why choose Mingtai Aluminum as supplier of tank truck?

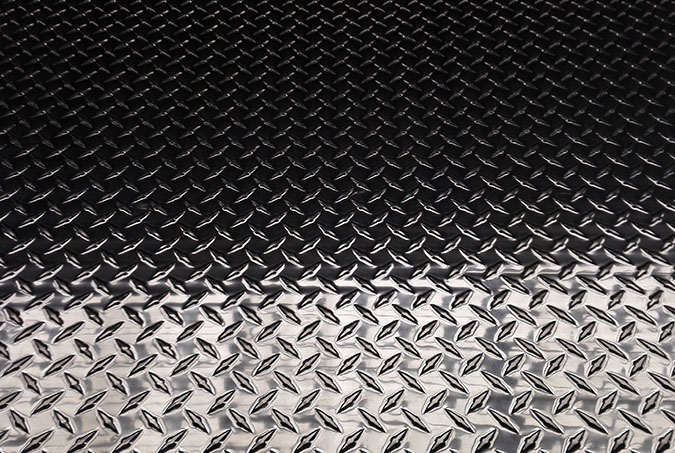

◆ Mingtai SMS rolling mill can produce flat and sharp large width aluminum plates, with a maximum width of 2650mm. It can also provide different surface treatments such as embossing, patterning, polishing, and mirror surface;
◆ Mingtai has a variety of tank car extrusion molds to choose from, which can produce and manufacture aluminum profiles according to customer requirements, and has the ability to open molds, which can save costs for customers;
◆Mingtai can be used for different welding methods, such as TIG, MIG, FSW, EBW, etc., providing tank car welding solutions for large and small orders;
◆Mingtai is the ideal aluminum supplier for tank trucks, providing customers with one-stop solutions in alloys, products, surface treatment, CNC processing, and other aspects.
